Understanding Dual Port Fast Chargers: A Comprehensive Technical Guide
Dual Port Configuration

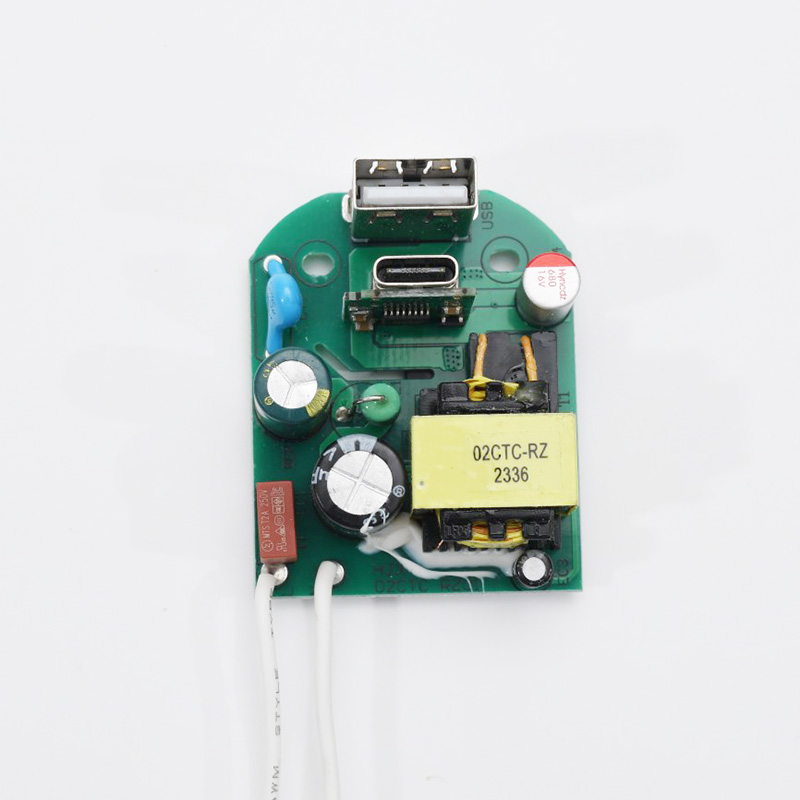

Modern Dual Port Fast Chargers typically feature one USB-C Power Delivery (PD) port and one USB-A Quick Charge (QC) port, enabling simultaneous charging of two devices with optimized power distribution.
Advanced Power Management
Intelligent power allocation systems automatically detect connected devices and distribute up to 100W total output power dynamically between ports based on device requirements and charging protocols.
Technical Specifications and Performance Data
USB-C Power Delivery Port: Supports PD 3.0/3.1 specifications with programmable power supply (PPS) capability, delivering voltages from 3.3V to 20V in 20mV steps and currents up to 5A, enabling maximum power output of 100W (20V/5A). USB-A Quick Charge Port: Compatible with QC 4.0+ technology, supporting voltage negotiation from 3.6V to 20V with Class A voltage steps of 200mV and Class B steps of 20mV, delivering up to 36W (12V/3A) with backward compatibility to QC 3.0 and QC 2.0 devices. Simultaneous Charging Performance: When both ports are active, intelligent power management allocates 65W to the USB-C port and 30W to the USB-A port, or alternatively 45W to USB-C and 45W to USB-A depending on the specific charger design and thermal constraints.
Key Technological Features
GaN (Gallium Nitride) Technology
Advanced dual port fast chargers utilize GaN semiconductors instead of traditional silicon, enabling higher switching frequencies (200kHz-1MHz compared to 50-100kHz for silicon), resulting in 40% smaller size and 25% higher energy efficiency (94-96% vs 88-92% for silicon-based chargers).
Multi-Protocol Compatibility
Comprehensive protocol support including USB Power Delivery (PD), Qualcomm Quick Charge (QC 4.0/5.0), Samsung Adaptive Fast Charging, Huawei SuperCharge (SCP/FCP), Oppo VOOC, and Apple Fast Charging, ensuring compatibility with over 95% of modern mobile devices.
Example power negotiation sequence
PDO: 5V/3A, 9V/3A, 15V/3A, 20V/3.25A
APDO: 3.3-5.9V/3A, 3.3-11V/2.25A, 3.3-16V/2A, 3.3-21V/1.5A
QC: 5V/2A, 9V/2A, 12V/1.5A
Thermal Management System
Incorporates advanced thermal regulation with temperature monitoring sensors that sample at 10Hz frequency, maintaining internal temperatures between 45-65°C during full load operation through precision-controlled fan cooling or passive heat dissipation using aluminum heat sinks with thermal conductivity of 200-250 W/mK.
Application Scenarios
Mobile Professionals: Simultaneously charging a laptop (65W) and smartphone (30W) during business travel or remote work sessions
Gaming Enthusiasts: Powering gaming smartphones while charging accessories like wireless controllers or gaming headsets
Content Creators: Charging high-performance tablets and external storage devices during field photography or videography work
Smart Home Integration: Serving as centralized charging station for multiple IoT devices and Smart Home controllers
Automotive Applications: Vehicle-mounted charging solutions with wide input voltage range (9-36V DC) for rideshare drivers
Educational Environments: Classroom charging stations supporting multiple student devices with overload protection
Maintenance and Operational Guidelines
Optimal Usage Practices
Ensure proper ventilation by maintaining at least 5cm clearance around the charger during operation. Avoid covering the charger or placing it on heat-absorbing surfaces. Regularly inspect cables for wear and tear, as damaged cables can reduce efficiency by 15-30% and increase thermal load.
Cleaning Procedures
Use isopropyl alcohol (70% concentration) with anti-static wipes to clean port contacts monthly. For exterior surfaces, employ compressed air at 30-50 PSI to remove dust from ventilation ports. Never use conductive cleaning solutions or submerge the charger in any liquid.
Storage Recommendations
Store in environments with temperature range of -20°C to 45°C and relative humidity below 85% non-condensing. Avoid prolonged exposure to direct sunlight which can degrade plastic components and reduce thermal performance over time.
Important Safety Notice: Always use certified cables rated for the maximum current capacity. Non-compliant cables can cause voltage drops up to 0.8V at 3A current, reducing charging efficiency and potentially causing overheating. Monitor charger temperature during extended use and discontinue use if surface temperature exceeds 75°C.
Technical Troubleshooting
If experiencing reduced charging speeds, verify cable quality and check for proper protocol handshake using USB power meters. Common issues include incompatible cables (resistance > 150mΩ) or environmental factors causing thermal throttling. For persistent problems, consult manufacturer specifications regarding input voltage requirements (typically 100-240V AC, 50/60Hz) and output stability tolerances (±5% voltage regulation).
