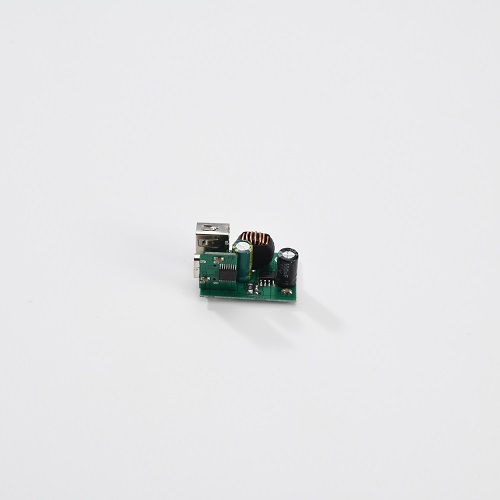

The AC DC Fast Charging Board is a high-performance control and power conversion solution designed for fast and efficient charging of electric vehicles (EVs), batteries, and other high-power devices. Also known as AC DC Fast Charger PCB, Fast Charging Control Board, or AC DC Converter Board, this board integrates advanced power electronics to deliver rapid, safe, and stable charging.
Our range of High-Speed Charging Boards, AC DC Power Supply Boards, EV Fast Charging Boards, and AC DC Charger Modules provides reliable performance for industrial, commercial, and automotive applications.
What is an AC DC Fast Charging Board?
An AC DC Fast Charging Board converts alternating current (AC) from the mains supply into direct current (DC) to charge batteries quickly and efficiently. It typically includes:
AC input stage with filtering and surge protection
Power conversion modules (rectifier and DC-DC converter)
Microcontroller or smart control unit for charging management
Safety features like overvoltage, overcurrent, and thermal protection
These boards are essential for multi-voltage fast charging boards, quick charge ac dc boards, and high-efficiency AC DC converters, ensuring rapid and safe energy transfer.
Key Advantages
Fast Charging Performance – Reduces charging time significantly for EVs and battery systems
High Efficiency – Minimizes energy loss during AC to DC conversion
Multi-Voltage Support – Compatible with different battery voltages and types
Compact & Integrated Design – Saves space while including all necessary protection circuits
Enhanced Safety – Overcurrent, overvoltage, short-circuit, and thermal protections included
Durability – High-quality PCB materials and components ensure long service life
Compared to traditional charging solutions, our AC DC Fast Charging Boards provide superior efficiency, safety, and reliability.
Materials and Components
PCB Substrate: High-temperature FR4 or metal-core PCB for heat dissipation
Power Electronics: MOSFETs, IGBTs, diodes, and capacitors for AC-DC conversion
Control Units: Microcontrollers or digital controllers for smart charging
Connectors and Terminals: High-current connectors compatible with EV or industrial systems
Specifications (Example)
| Parameter | Specification |
|---|---|
| Input Voltage | 100–240V AC |
| Output Voltage | 12V–600V DC (depending on model) |
| Maximum Current | 10A–200A |
| Efficiency | ≥ 95% |
| Operating Temperature | -20°C to 70°C |
| Dimensions | Customizable based on application |
| Safety Standards | IEC, UL, CE compliant |
Applications
AC DC Fast Charging Boards are widely used in:
Electric Vehicle Chargers – Residential and commercial EV fast charging stations
Battery Energy Storage Systems – Industrial and renewable energy applications
Portable Charging Devices – Quick-charge power banks and battery packs
Industrial Equipment – Machinery requiring rapid DC power supply
Smart charging modules – Integrated into advanced EVSE (Electric Vehicle Supply Equipment)
Installation and Maintenance Tips
Ensure correct voltage and current specifications before installation
Mount in a well-ventilated area to prevent overheating
Connect input AC and output DC terminals according to the schematic
Use proper fuses and circuit breakers for safety
Regularly inspect for dust, corrosion, or damaged components
Why Choose Our AC DC Fast Charging Boards?
Advanced AC DC Fast Charger PCB design for high efficiency and reliability
Wide product range: Fast Charging Control Board, AC DC Converter Board, EV Fast Charging Board, High-Speed Charging Board
Supports multi-voltage fast charging for various battery types
Customizable solutions for different power ratings and applications
Compliance with international safety standards (IEC, UL, CE)
Reliable bulk supply and OEM/ODM support for B2B customers
FAQ – AC DC Fast Charging Board
Q1: What is an AC DC Fast Charging Board used for?
It converts AC mains power to DC and manages fast charging of batteries or EVs safely and efficiently.
Q2: Can this board handle multiple battery voltages?
Yes, our multi-voltage fast charging boards are designed to support a wide range of battery voltages.
Q3: What protection features are included?
Overvoltage, overcurrent, short circuit, thermal protection, and surge protection.
Q4: Are your boards compatible with EV charging stations?
Yes, our EV fast charging boards and AC DC charger modules are widely used in residential, commercial, and industrial EVSE.
Q5: Can these boards be customized?
Yes, we provide custom solutions for voltage, current, PCB size, and control features according to customer requirements.
