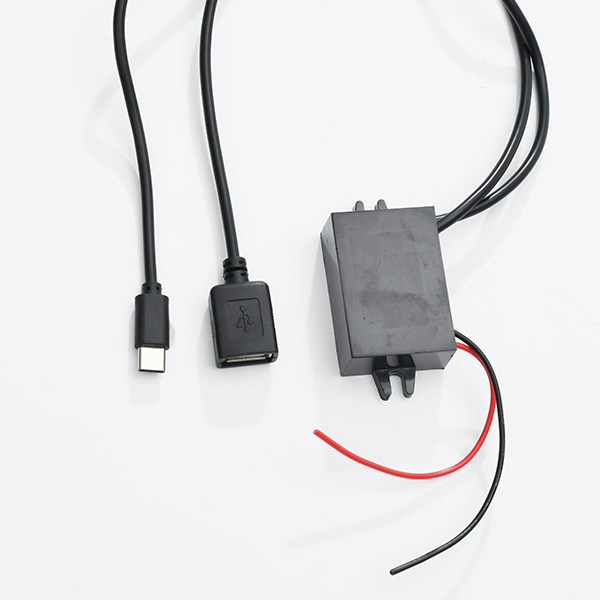

What is a Step-Down Converter?

A step-down converter, commonly referred to as a buck converter, is a switched-mode power supply (SMPS) that efficiently converts a higher DC input voltage to a lower DC output voltage. This power conversion is achieved through the rapid switching of semiconductor devices (typically MOSFETs) at frequencies ranging from 100 kHz to 3 MHz, controlled by a pulse-width modulation (PWM) signal. The fundamental operation involves storing energy in an inductor during the "on" period of the switch and releasing it to the load during the "off" period. This process, combined with output capacitor filtering, results in a stable output voltage that is lower than the input voltage. The conversion ratio is determined by the duty cycle (D) of the PWM signal, where Vout = Vin × D, with D representing the fraction of time the switch is on during each switching cycle.

Key Characteristics with Technical Data

High Efficiency Conversion

Modern buck converters achieve exceptional efficiency by minimizing power losses across various load conditions. High-quality converters maintain efficiency above 90-95% across their operational range, significantly outperforming linear regulators which dissipate excess voltage as heat. This efficiency is achieved through optimized switching components, low-resistance inductors (typically with DCR values of 1-10 mΩ), and advanced control algorithms that minimize switching and conduction losses. For instance, a typical synchronous buck converter operating at 500 kHz with 12V input and 3.3V output can maintain 94% efficiency at full load, reducing power dissipation by approximately 75% compared to equivalent linear regulator solutions.

Wide Input Voltage Range

Step-down converters are designed to accommodate broad input voltage specifications, typically supporting ranges from 4.5V to 60V for standard industrial models, with specialized high-voltage variants extending to 100V. This wide operational range provides significant design flexibility, allowing a single converter design to accommodate multiple input sources such as automotive batteries (12V-24V), industrial power supplies (24V-48V), and telecommunications equipment (48V). The ability to handle input voltage variations of up to ±20% while maintaining stable output makes buck converters ideal for applications with fluctuating power sources.

Precision Output Regulation

Advanced buck converters provide exceptional output voltage accuracy with tight regulation specifications. High-performance models typically maintain output voltage within ±1% to ±2% of the nominal value across the entire operating range of line, load, and temperature variations. This precision is achieved through high-accuracy voltage references (typically 0.5% to 1% initial accuracy), precision feedback resistor networks with 0.1% tolerance, and advanced control loops with bandwidths up to 1/5 to 1/10 of the switching frequency. Load regulation is typically specified at 0.1% to 0.5% for load variations from 10% to 100% of maximum rated current.

Thermal Performance and Power Density

Modern buck converters achieve remarkable power density through advanced thermal management and component integration. Contemporary designs can deliver power densities exceeding 100 W/in³ while maintaining junction temperatures within safe operating limits (typically < 125°C). This is accomplished through optimized PCB layout for thermal dissipation, selection of components with low thermal resistance (MOSFETs with R_θJA of 40-60°C/W), and efficient package designs that maximize surface area for heat transfer. Forced air cooling can further enhance thermal performance, allowing continuous operation at ambient temperatures up to 85°C without derating.

Transient Response and Stability

Buck converters are engineered to provide excellent transient response to rapid load changes, with recovery times typically under 50-100 μs for load steps of 50% of maximum current. This performance is achieved through optimized compensation networks, advanced control techniques such as constant-on-time (COT) or voltage-mode control with type III compensation, and appropriate output capacitor selection with low equivalent series resistance (ESR typically 1-10 mΩ). The control loop phase margin is typically maintained between 45° and 60° to ensure stability while providing adequate response speed.

Application Scenarios

Consumer Electronics and Mobile Devices

In smartphones, tablets, and portable electronics, buck converters efficiently step down lithium-ion battery voltages (3.7V-4.2V) to the various voltage rails required by system components. Modern smartphones typically incorporate 10-20 individual buck converters to power processors (0.8V-1.2V), memory (1.8V), display backlights (5V-18V), and peripheral interfaces (3.3V). The high efficiency of buck converters directly translates to extended battery life, with power savings of 15-30% compared to alternative regulation methods. The small footprint of modern integrated buck converters (as small as 2mm × 2mm) makes them ideal for space-constrained portable applications.

Automotive Electronics Systems

Automotive applications extensively utilize buck converters to regulate the unstable vehicle battery voltage (nominally 12V but varying from 6V during cranking to 36V during load dump) to stable lower voltages required by electronic control units (ECUs), infotainment systems (5V, 3.3V), sensors (5V, 3.3V), and lighting systems. Automotive-grade buck converters are qualified to AEC-Q100 standards and operate across temperature ranges of -40°C to +125°C. They incorporate protection features including load-dump survival (up to 40V for 400ms), reverse polarity protection, and overtemperature shutdown to ensure reliable operation in the harsh automotive environment.

Industrial Automation and Control Systems

Industrial applications employ buck converters to step down standard industrial DC supply voltages (24V or 48V) to the lower voltages required by PLCs (5V, 3.3V), motor controllers, sensor networks, and communication interfaces. Industrial buck converters are designed for high reliability with MTBF ratings exceeding 1,000,000 hours and incorporate reinforced isolation (up to 2.5kV) for safety in high-voltage environments. They typically feature wide input voltage ranges (9V to 60V) to accommodate voltage fluctuations common in industrial settings and provide high efficiency (> 92%) to minimize heat generation in enclosed control cabinets.

Telecommunications Infrastructure

Telecom equipment utilizes buck converters to efficiently step down the standard -48V DC backup power to the various voltage levels required by line cards, network processors, FPGAs, and interface circuits. High-current buck converters in telecom applications deliver up to 100A at output voltages as low as 0.8V for advanced processors, with efficiency maintained above 92% even at partial loads. These converters incorporate advanced features such as remote sense, margining control, and comprehensive monitoring and reporting capabilities compatible with telecom management standards. The high power density (up to 300W/in³) enables maximum functionality in limited rack space.

Renewable Energy Systems

In solar power systems, buck converters are employed to efficiently regulate the highly variable voltage from photovoltaic panels (typically 12V to 48V) to stable battery charging voltages or to power control electronics. Maximum Power Point Tracking (MPPT) charge controllers utilize buck converter topology to maintain the solar panel at its optimal operating voltage (typically 70-80% of open-circuit voltage) while delivering the maximum available power to the battery or load. High-efficiency designs (> 97%) minimize energy losses in the conversion process, which is critical for maximizing the overall energy harvest from renewable sources.

Maintenance and Operational Best Practices

Thermal Management and Inspection

Regular thermal monitoring is essential for maintaining buck converter reliability and longevity. Use infrared thermography or thermal probes to periodically measure critical component temperatures, ensuring MOSFET junctions remain below 125°C, inductors below 100°C, and capacitors below their rated temperature (typically 85°C or 105°C). Maintain adequate airflow around converters, with recommended minimum clearance of 10-15mm from adjacent components. For forced-air cooled systems, regularly clean air filters and verify fan operation. Check for discoloration of PCB material or components, which indicates overheating and potential future failure. Document thermal profiles during initial qualification and compare during periodic maintenance to identify degradation trends.

Input/Output Capacitor Health Assessment

Electrolytic capacitors are common failure points in buck converters due to gradual electrolyte evaporation and ESR increase. Periodically measure output voltage ripple with an oscilloscope; a significant increase (more than 20-30% from baseline) may indicate capacitor degradation. For critical applications, implement capacitor ESR measurement during scheduled maintenance using an LCR meter, replacing capacitors when ESR increases beyond 200% of initial value. For polymer and ceramic capacitors, inspect for physical damage or cracking. Maintain records of capacitor replacement dates, as most electrolytic capacitors have service life ratings of 2,000-10,000 hours at maximum rated temperature.

Magnetic Component Evaluation

Inductors and transformers in buck converters require periodic inspection for mechanical integrity and performance degradation. Audibly check for abnormal buzzing or whining during operation, which may indicate core saturation or loose windings. Visually inspect for cracked cores, discolored or damaged insulation, and signs of overheating. Measure inductor DC resistance periodically; an increase of more than 10-15% from the initial value may indicate winding degradation. For high-current applications, use thermal imaging to identify hot spots in magnetics that may indicate localized heating due to proximity effects or inadequate core material.

Semiconductor Device Monitoring

Power semiconductors (MOSFETs and diodes) should be monitored for signs of degradation. Periodically measure switch-node waveforms with an oscilloscope; increased ringing, slower rise/fall times, or abnormal shape may indicate gate driver issues or MOSFET degradation. Check for increased forward voltage drop in synchronous MOSFETs by comparing input-to-output efficiency measurements against baseline data. For non-synchronous converters, monitor the freewheeling diode temperature as increased temperature may indicate degradation. Ensure gate drive voltages remain within specified ranges (typically 5V to 12V) as weak gate drives can
