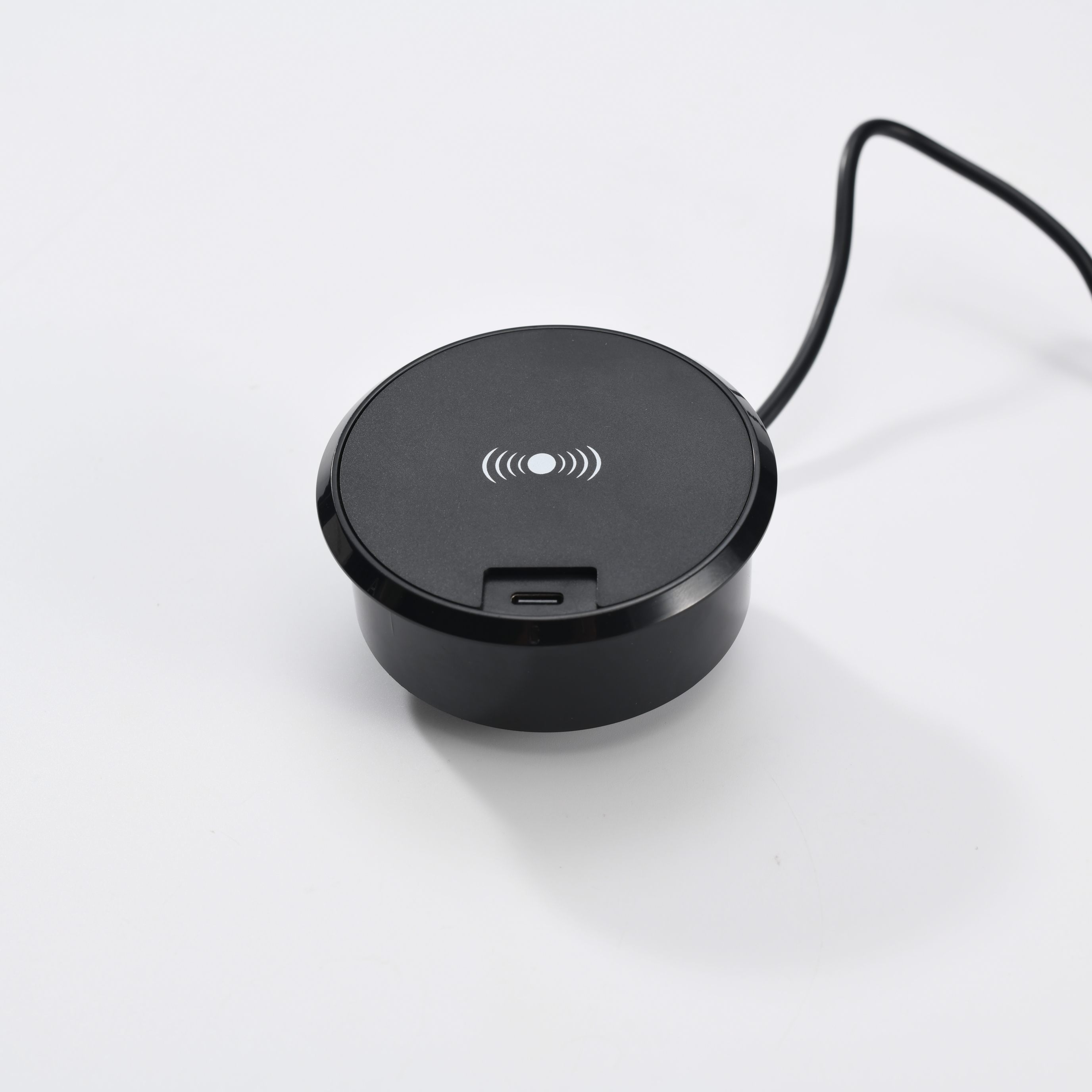

Comprehensive Guide to Embedded Wireless Chargers
Embedded wireless charging represents a significant advancement in power delivery technology, seamlessly integrating inductive charging capabilities directly into surfaces, furniture, and devices without the need for external accessories. This technology utilizes the principle of electromagnetic induction to transfer energy from a transmitter coil embedded in a surface to a receiver coil in a compatible device, typically operating at frequencies between 100-205 kHz for Qi standard devices, with higher power implementations now reaching up to 15 Watts for fast charging smartphones and up to 30 Watts or more for laptops and larger devices. The latest iterations feature foreign object detection (FOD) that can identify metallic obstructions with precision, reducing energy waste to minimal levels often below 100mW in standby mode, and achieving spatial freedom with coil alignment tolerances of up to ±20mm for optimal power transfer efficiency that typically ranges between 70-80% for well-aligned systems.
Modern Embedded Wireless Chargers incorporate sophisticated thermal management systems that monitor temperature through integrated sensors, maintaining surface temperatures below 35°C to ensure user safety and device integrity. They support multiple charging protocols including WPC Qi (v1.3 being the latest), AirFuel Resonant, and proprietary fast-charging technologies that can deliver up to 5A of current wirelessly. The embedded nature allows for IP-rated dust and water resistance, often reaching IP67 standards when properly sealed, making them suitable for harsh environments where traditional charging ports would be vulnerable.
Key Technical Characteristics with Performance Data
Power Delivery Efficiency and Specifications
Embedded Wireless Chargers are engineered for maximum efficiency despite being concealed within materials. High-quality systems maintain efficiency ratings of 75-85% across the recommended coupling distance, which typically ranges from 3-8mm through non-metallic materials like wood, plastic, or glass. The latest Qi v1.3 standard ensures compatibility across devices while providing 5W, 7.5W, 10W, and 15W power profiles, with extended power profile (EPP) supporting up to 30W for larger devices. The operating frequency is tightly controlled between 110-205kHz to minimize electromagnetic interference (EMI) with other devices, with field strength maintained well below international safety limits (typically < 30% of ICNIRP guidelines).
Thermal Management and Safety Systems
Advanced thermal management is critical for embedded systems. These chargers incorporate multiple NTC thermistors that monitor temperature at 100ms intervals, reducing power output or shutting down if temperatures exceed 60°C at the coil. Foreign object detection systems can identify metallic objects as small as a 0.5g paperclip with 99% accuracy, immediately halting power transmission to prevent energy waste and potential heating hazards. The systems are designed to operate reliably in ambient temperatures ranging from 0°C to 35°C, with some industrial-grade units rated for -10°C to 50°C operation.
Integration and Connectivity Features
Modern embedded chargers often include Bluetooth Low Energy (BLE 5.0) or NFC connectivity for user authentication, usage analytics, and power management customization through mobile applications. The integration depth varies from 2.5mm ultra-slim profiles for furniture integration to more robust 8mm designs for automotive applications. The latest models feature multi-coil arrays (typically 3-19 coils) that create expanded charging areas up to 20cm × 30cm, enabling true "drop-and-charge" convenience without precise alignment requirements.
Application Scenarios
Automotive Integration
Modern vehicles increasingly feature Embedded Wireless Chargers seamlessly integrated into center consoles, dashboard recesses, and even rear passenger areas. These systems are designed to withstand automotive temperature extremes (typically -40°C to 85°C operating range) and vibrations up to 2.5G acceleration. They often include additional features like anti-slip surfaces with pressure sensors that activate charging only when a device is detected, and integration with the vehicle's infotainment system to display charging status on the main screen. The power delivery is optimized for navigation-intensive use cases, providing sufficient charge even with screen-on navigation running.
Furniture and Architectural Integration
High-end furniture manufacturers and architects are increasingly embedding wireless charging technology into desks, tables, nightstands, and kitchen countertops. These installations require precise alignment during manufacturing, with tolerance stacks maintained within ±1mm to ensure optimal performance through various materials like wood, marble, or composite surfaces. Commercial installations in cafes, airports, and hotels feature reinforced designs capable of withstanding thousands of charging cycles daily, often incorporating durable materials like Corning Gorilla Glass with surface hardness ratings of 7H or higher to resist scratches and wear from repeated device placement.
Healthcare and Medical Environments
In healthcare settings, embedded wireless chargers are integrated into hospital bedside tables, medical carts, and nursing stations where cleanliness is paramount. These systems are sealed to IP68 standards to withstand frequent cleaning with disinfectant solutions, and are designed without crevices where pathogens could accumulate. The electromagnetic emissions are rigorously controlled to avoid interference with sensitive medical equipment, typically operating at field strengths below 10mA/m at 1-meter distance, which is significantly below the thresholds that would affect most medical devices. The technology enables medical devices to be sealed completely without charging ports, improving sterilization capabilities.
Industrial and IoT Applications
Embedded wireless charging is revolutionizing industrial environments by powering IoT sensors and devices in locations where wired power is impractical or hazardous. These industrial-grade systems can operate in temperatures ranging from -40°C to 105°C and are sealed to IP69K standards for protection against high-pressure, high-temperature washdowns. They power devices at distances up to 45mm through protective enclosures, eliminating the need for penetrations that compromise environmental ratings. Industrial systems often deliver higher power levels, with some capable of providing up to 65W for tools and equipment, featuring communication protocols that enable power negotiation and usage monitoring for predictive maintenance scheduling.
Maintenance and Care Procedures
Surface Cleaning and Protection
Regular cleaning of the charging surface is essential for maintaining optimal performance. Use only soft, lint-free cloths slightly dampened with water or isopropyl alcohol (concentration not exceeding 70%) to clean the surface. Avoid abrasive cleaners, solvents, or ammonia-based solutions that can degrade anti-slip coatings or optical clarity of indicator lights. For furniture-integrated chargers, use coasters for beverages to prevent liquid spills that might seep into seams despite protective sealing. Establish a cleaning frequency based on usage intensity—high-traffic commercial installations may require daily cleaning, while residential applications typically need weekly attention.
Thermal Management and Ventilation
Ensure adequate ventilation around embedded charging surfaces, maintaining at least 100mm of clearance from walls or other objects that might impede airflow. Periodically check that ventilation openings (if present) are free from dust accumulation using compressed air with pressure not exceeding 0.5 bar to avoid damaging internal components. Monitor charging sessions for excessive heat generation (surface temperatures above 40°C indicate potential issues), and if observed, discontinue use and consult a technician. Avoid placing insulating materials such as papers, books, or fabrics over active charging areas during operation.
Performance Monitoring and Diagnostics
Implement regular performance checks using compatible devices with known battery characteristics. Note the time required to charge from 20% to 80% capacity and compare against baseline performance—increases of more than 15% in charging time may indicate deteriorating efficiency. For systems with connectivity features, monitor error logs and performance metrics through companion applications. Periodically inspect the physical condition of the charging surface for cracks, discoloration, or deformation that might indicate underlying issues. Professional calibration every 12-18 months is recommended for commercial installations to maintain optimal alignment and efficiency.
Electrical Safety and Power Quality
Ensure stable power supply with voltage maintained within ±10% of the rated specification and total harmonic distortion (THD) below 5%. Use surge protectors with response time less than 1 nanosecond and clamping voltage appropriate for the system. For permanently installed units, verify grounding continuity every six months with resistance measurements not exceeding 0.1 ohm. In regions with unstable power grids, consider installing uninterruptible power supplies (UPS) with pure sine wave output to maintain consistent power quality during operation.
Preventative Maintenance Schedule
Establish a comprehensive preventative maintenance program including visual inspections every 30 days, performance validation every 90 days, and professional technical servicing annually. Maintenance should include verification of alignment tolerances (should remain within ±2mm of original specification), foreign object detection functionality testing with calibration objects, and thermal imaging to identify hot spots that might indicate developing issues. Keep records of all maintenance activities, including performance metrics before and after servicing to track long-term degradation rates and plan for eventual replacement.
